Weckman Type2 1050

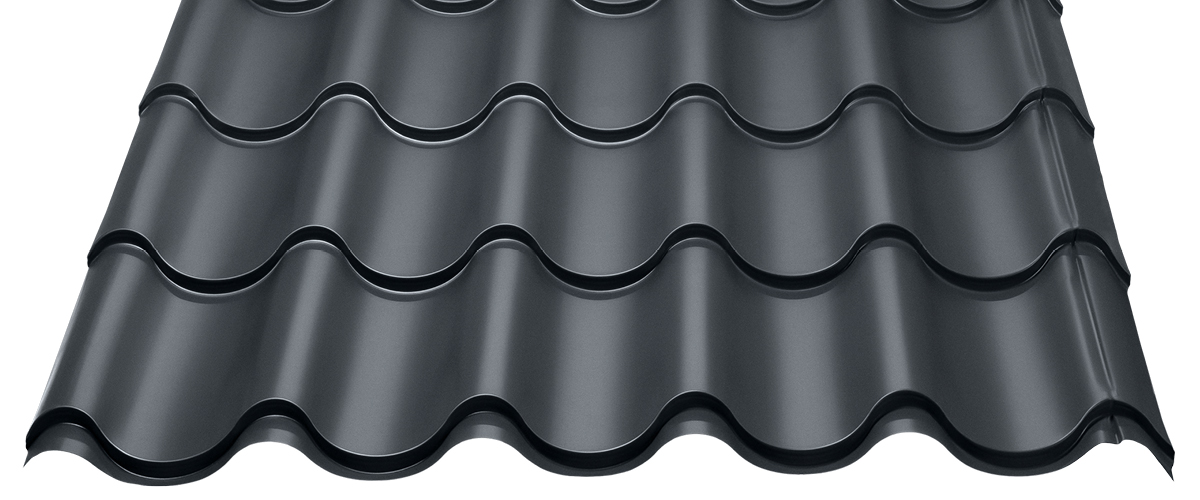

A WECKMAN CLASSIC

Weckman Terästiili has been a favourite among builders for almost 40 years.
Thanks to its profiling, Terästiili gives your roof a nice and calm but also impressive look.

Steel thickness 0.5 mm.

Available in quality class Premium 50 and Standard 40.

Spruce green
RR11

Dark grey
RR23

Red
RR29

Dark brown
RR32

Black
RR33

Tile Red
RR750

ENVIRONMENTALLY FRIENDLY

Made of 100% recyclable warranty coated steel.

DURABLE

Durable warranty coated structural steel – good stepping durability and quality classification of up to 50 years.

IMPRESSIVE

Looks great. Choose between matte or shiny paint coatings in several different colours.

INEXPENSIVE

Durable, low-maintenance and long-lived.

TECHNICAL INFORMATION AND ROOF ACCESSORIES

TECHNICAL INFORMATION

INSTALLATION ACCESSORIES

DRAINAGE SYSTEM

ROOF SAFETY ACCESSORIES

INSTRUCTIONS

WECKMAN TERÄSTIILI TECHNICAL INFORMATION

Weckman Type2 1050

$Nominal effective width (mm)#1050
$Profile height (mm)#47
$Maximum length (mm)#~7000
$Minimum length (mm)#450
$Minimum recommended roof inclination#1:4
$Raw material# 0.5 mm structural steel
$Uses#Roofing sheet
$Rib interval (mm)#350
$Steel quality#S320GD+Z
$Fire rating#BROOF (RakMk E1)
$Quality system#ISO-9001
$Total width (mm)#~1130

Dimensions according to SFS-EN 508-1 tolerances

BASIC PACKAGE

Roofing sheet
Shaped ridge capping
Gable flashing 160 mm
Screws 4.8 x 28 mm
Ridge seal

ACCESSORIES PACKAGE

Ridge ventilation piece
Overhang
Roof safety accessories
Drainage system

WECKMAN TIILIKUVIO- JA POIMULEVYKATON ASENNUSTARVIKKEET

Katelevy

Muotoharjalista L=1,93 m

Tiilikuviokatoille. Suositellaan kattokaltevuuksille
loivempi kuin 1:2.

Sileä harjalista L=2 m

Poimulevykatoille. Kaikille kattokaltevuuksille.

Päätylista L=2 m

Liittymälista L=2 m

Saatavissa oikeaan kulmaan valmiiksi taivutettuna.

Räystäslista L=2 m

Aluslista L=2 m

Välttämätön räystäslipoissa päätylistan alla - estää otsalautojen kastumisen.
Profiilikohtainen.

Jiirilevy, täysleveä L=2 m

Kattoluukku

Kulkuaukon koko 600 x 600 mm. Sisältää saranat ja lukituksen

Läpivientiputken pohjalevy L=1 m

Poimulevykattoihin. Käytetään yhdessä eristettyjen läpivientiputkien kanssa.

Auman päätykappale

Muotoharjalistan kanssa.

Viemärin tuuletusputki

Eristetty 110. Täydellinen sarja, sisältää kattoläpiviennin ja poimulevyille lisäksi pohjalevyn (nro 10).

Ilmastoinnin poistoputki

Eristetty 125/160 mm. Täydellinen paketti, sisältää myös kattoläpiviennin ja poimulevyille lisäksi pohjalevyn (nro 10).

Tuuletuskappale

Muoto- ja sileälle harjalistalle.

Y-kappale

Muotoharjalistan kanssa.

T-kappale

Muotoharjalistan kanssa.

Läpivientikumi

25–70 mm, 50–100 mm,
90–150 mm, 125–200 mm

Muotoharjalistan päätykappale

Tiivisteet

Kaikkiin Weckman-profiileihin on tarjolla sopivat tiivisteet. Tiivistenauha 3 x 10 mm sivuttais- ja jatkolimityksiin. Muotoharjalistan kanssa käytettävä tiivistematto harjalle ja aumaan.

Kateruuvi 4,8 x 28 mm

Tiivisteelliset kateruuvit toimitetaan sinkittyinä ja vakioväreissä.

Paikkamaali

25 ml, vakiovärit

GUARANTEED DURABILITY AND SAFETY

Finish your Weckman roof with an impressive and practical drainage system. Trough gutters and gutter pipes are manufactured of hot galvanised steel, which is Pural-coated on both sides. The benefits of the coating are excellent corrosion resistance, good cleanability and durable appearance. Standard colours: white, red, dark grey, dark brown and black .

DIMENSIONS

Down pipe
Down pipe set for 3.0-metre eaves, eaves-heights of over 3 metres with extension parts.

Trough gutter

Standard length Standard length 3.0 m, 4.0 m or 5.0 m. Outer bracket and overlap piece as standard.

P13 Trough gutter

P13 End piece

P13 Gutter bracket, short

P13 Gutter bracket, long

P13 Gutter bracket, angled (1:3; 1:2,5; 1:1,15)

P13 Overlap piece

P13 Gutter discharge

P13 Inner corner

P13 Outer corner

P10 Upper bend

P10 Lower bend

P10 Discharge pipe

P10 Downspout fastener

P10 Diversion

P13 Downspout pipe 1.0 m and 2.3 m

SAFE AND DURABLE WECKMAN ROOF SAFETY ACCESSORIES

Wall ladders guarantee safe entry onto the roof. A roof bridge ensures a safe passage on the roof in connection with, e.g., chimney sweeping, snow dropping, antenna installations and other tasks on the roof. Snow breakers are designed to prevent damage caused by snow dropping and to protect the roof coating. All roof safety accessories are reliable and high-quality Finnish products.

LADDERS

Weckman ladders are made of hot galvanised oval tubes without weldings. The steps are round tubes. Wall ladders come in powder-coated or galvanised styles and roof ladders are only available powder-coated.Standard colours for roof and wall ladders: white, red, dark grey, dark brown and black.

ROOF LADDER

Standard lengths 1.5m, 2.4 m, 2.7 m, 3.6 m, 4.2 m, 4.8 m, 5.1 m, 5.4 m, 6.0 m, 6.3 m and 7.2 m. The ladder set includes the ladder frame and wall mounts.

WALL LADDER

Standard lengths 1.5m, 2.4 m, 2.7 m, 3.6 m, 4.2 m, 4.8 m, 5.1 m, 5.4 m, 6.0 m, 6.3 m and 7.2 m. The ladder set includes upper arcs for the ladder frame and wall mounts (for an eaves width of 80–100 cm).

SAFETY LADDER

1.8 m, 2.4 m, 2.7 m, 3.0 m, 3.6m and 4.2 m. Includes the ladder frame and wall mounts.

ROOF BRIDGE

A roof bridge can also be used for the construction of work platforms and stairs on the roof. Weckman roof bridges are safe, have a snow permeation capacity of over 50% and are classified as class 2, allowing the fastening of safety ropes. The roof bridges are powder coated. Roof profile-specific roof mounts. Standard colours: dark grey, red, dark brown, black, tile red.

ROOF BRIDGE

Standard lengths 1.21 m (3 roof mounts), 2.47 m (3 roof mounts) and 2.97 m (4 roof mounts).

SNOW BREAKER

In Finnish conditions, snow breakers are necessary where people pass by.Weckman tube snow breakers are made of hot galvanised steel.The snow breaker is delivered either galvanised or powder-coated.Two oval tubes, four roof mounts according to the roof sheet.Standard colours: dark grey, red, dark brown, black, tile red.

SNOW BREAKER

3000 mm

Instructions for roof maintenance

4.71 MB

Weckman tile pattern sheets: DoP.706/13

174.69 KB

Weckman Terästiili sectional views

46.98 KB

Minimum roof inclinations

412.70 KB

Weckman drainage systems and roof safety accessories, installation instructions

Weckman tile pattern sheets, installation instructions

6.61 MB

Weckman quality is ensured by manufacture according to the ISO9001 quality system. Weckman quality can also be identified by the CE certification, as all of our steel products fulfil the requirements of standards SFS-EN 14783:2006andSFS-EN 1090-1:2009+A1:2011. Each of our employees has taken on our goal of keeping work high-quality and faultless. Our load-bearing steel products have VTT approvals and certificates.
