Weckman walls

Weckman wall sheets for outer and inner walls and ceilings. Various profiles and colours can be combined to create impressive results.

Weckman corrugated wall sheets make for impressive and durable facade cladding. Construction is fast and affordable. Varying sheets, profiles and installation direction allows for the creation of attractive entities. The end result will always be reliable and easy to take care of. Wall sheets are available in the same colour and coating options as the Weckman roof sheets.

BENEFITS

  • Wide range of wall profiles and wall accessories
  • Many colour and coating options
  • Installable in the horizontal or vertical direction
  • Fast and affordable installation
  • 10–20-year coating guarantee depending on the material

Our factory customer service teams are at the service of professional builders and construction companies.

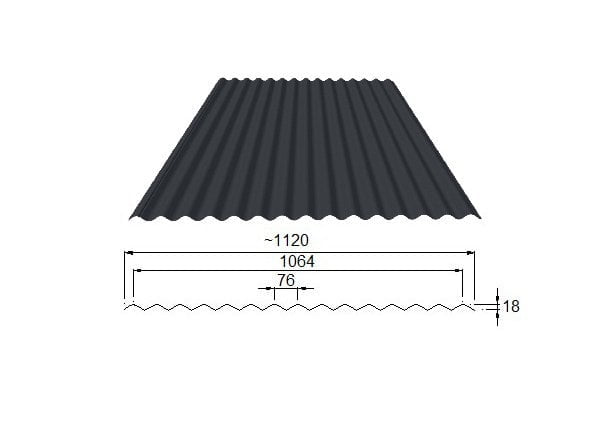

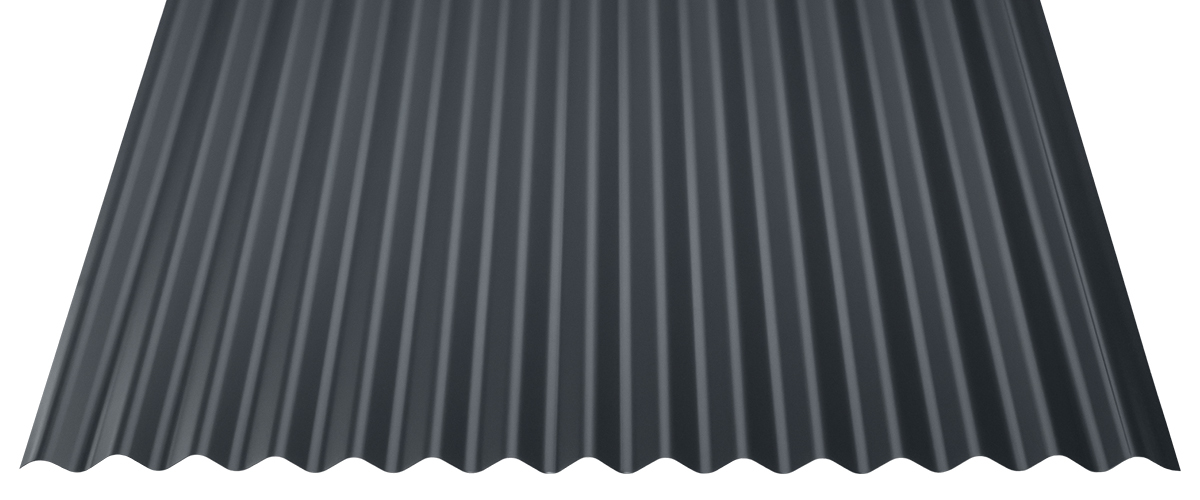

Weckman W-1/1064

Nominal effective width 1,064 mm
Total width ~1120 mm
Raw material thickness 0.45–0.6 mm

W-1/1064

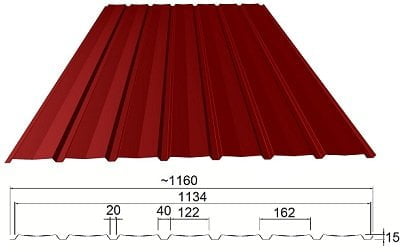

Weckman W-15/1134

Effective width 1,134 mm
Total width ~1160 mm
Raw material thickness 0.45–0.6 mm

W-15/1134

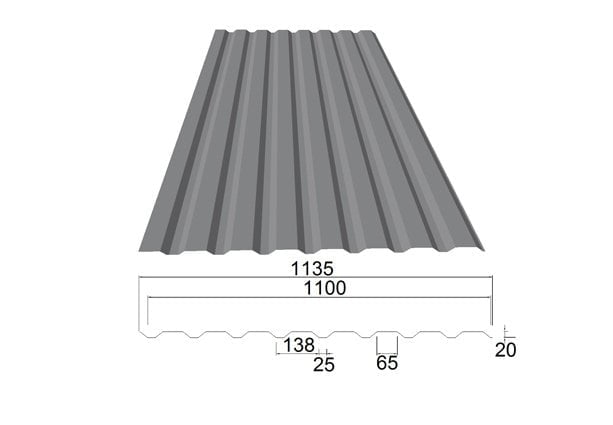

Weckman W-20A/1100

Effective width 1,100 mm
Total width ~1135 mm
Coating as option also on B side (W-20B/110)
Raw material thickness 0.45–0.7 mm

W-20A/1100

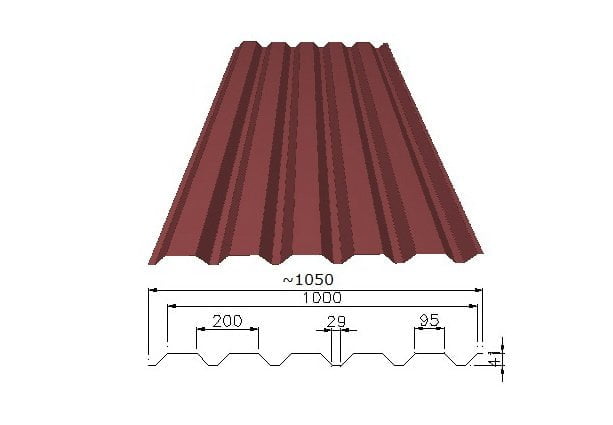

Weckman W-45EA/1000

Effective width 1,000 mm
Total width ~1050 mm
Coating as option also on the B side (W45EB/1000)
Raw material thickness 0.45–0.9 mm
Product is CE-certified
Dimensions according to SFS-EN 508-1 tolerances

W-45EA/1000

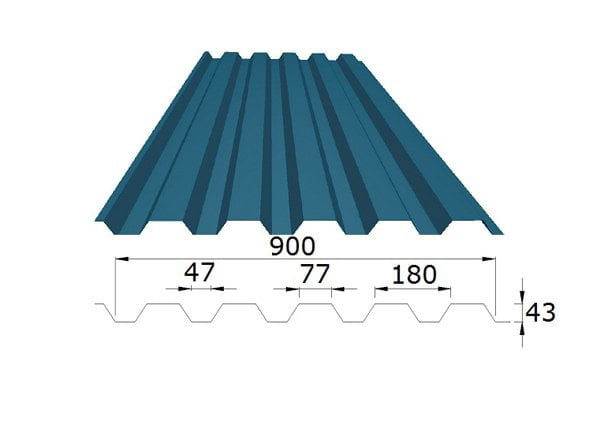

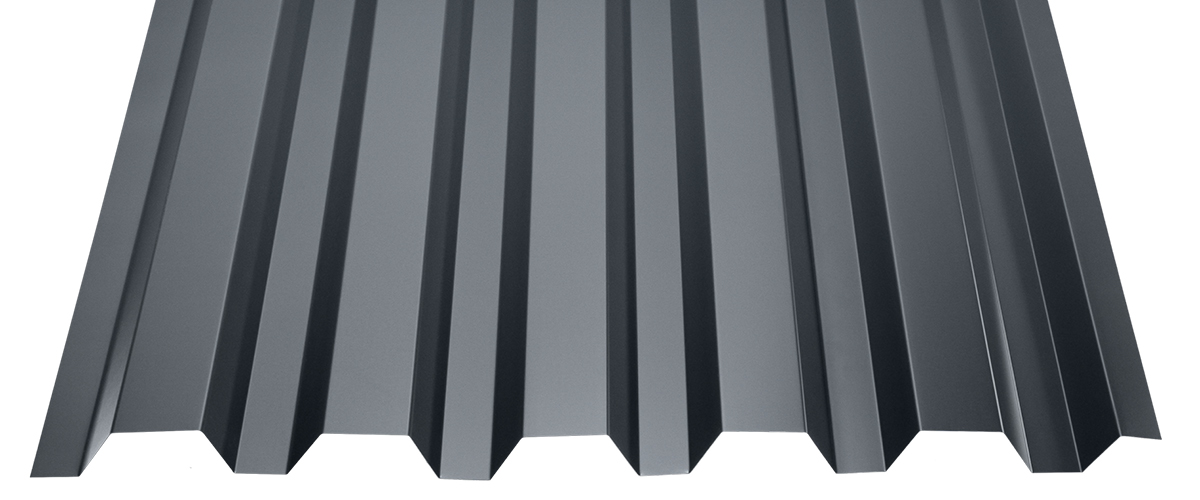

Weckman W-45JA/900

Effective width 900 mm
Total width ~980 mm
Raw material thickness 0.45–0.9 mm

W-45JA/900

Weckman Door sheet

Width 1,250 mm
Profile height 1.5 mm
Raw material thicknesses 0.45–0.5 mm
Product is CE-certified
Dimensions according to SFS-EN 508-1 tolerances

Door sheet

Weckman Light plate

Available for Weckman corrugated wall sheets W-15/1134 and W-45JA/900. Light sheets are made of glass-fibre-reinforced semi-transparent polyester.
Standard length 2,900 mm
Raw material thickness about 1 mm

Light plate

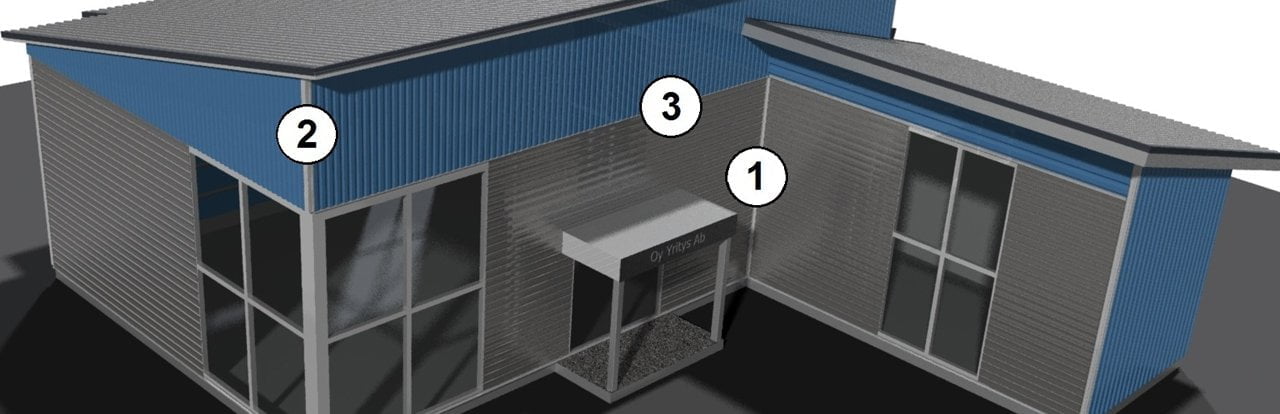

Weckman Wall accessories

Also check out our wall accessories: inside corner flashing, outside corner flashing and wall-top flashing.

Wall accessories
