Weckman Progantti Acoustic Pro
Interlocking roof sheet

Progantti Acoustic Pro interlocking roof sheet – a new level of silence

The new Progantti Acoustic Pro is a interlocking roof sheet with a factory-machined sound-absorbing layer that complements the roof’s anti-condensation protection. It is a technically and visually finished roof sheet metal that reduces roof-borne sound, improving living comfort and protecting structures from moisture – for decades to come.

Steel thicknesses 0.5 mm and 0.6 mm.

Available in quality grades Premium 50 and Standard 40.

Request a quote Contact an expert

Standard colors: Pine green RR11, Light gray RR21, Dark gray RR23, Red RR29, Dark brown RR32, Black RR33, Brick red RR750.

Attractive and high-quality Weckman Progantti Acoustic Pro interlocking ceiling

Quieter roof

The acoustic layer dampens noise caused by rain, wind and thermal expansion.

Condensation protection as standard

Factory-installed additional condensation protection binds moisture and protects the underlying structures.

Clean choice

Antibacterial and mold-resistant material that prevents microbial growth and keeps the roof healthy.

Affordable and durable

Easy to care for and long-lasting.

Finished and secure

Progant’s advanced interlocking construction, easy to install.

Waterproof even on sloping roofs

The seam structure ensures watertightness for roof slopes of up to 1:8 without additional seals.

Wide range

Several profile, color and coating options as well as raw material thicknesses.

Smaller carbon footprint

Smaller carbon footprint in manufacturing. Manufactured with solar energy.

Progantti Acoustic Pro.

For quieter living

The Acoustic Pro layer cuts through sound transmitted through the roof. Rain drumming and wind noise are dampened, increasing living comfort in all weather conditions.

Progantti Acoustic Prossa on ääntä vaimentava kerros.

Acoustic damping felt already integrated

The factory-installed insulation felt on the underside of the roofing sheet not only acts as sound insulation but also as a supplementary condensation protection together with the underlayment, protecting the roof structures.

Progant’s structural advantages

The Weckman side bracket allows the roofing material to expand freely, which reduces warping and noise. The joint structure is watertight, and the roof is ventilated according to regulations, even in cold weather.

Ecological choice

The materials available are SSAB Zero (made from almost fossil-free recycled material) and SSAB GreenCoat®. Weckman’s sheet metal products are manufactured extensively using solar energy.

Weckman Progantti Acoustic Pro is made with solar energy

70-80% of Weckman’s coated sheet metal products are manufactured in an environmentally responsible manner. SSAB GreenCoat® steel and Arcelor Mittal’s environmentally friendly products are part of Weckman Steel’s range. In the future, fossil-free steel will be used in Weckman sheet metal. Fossil-free steel production will reduce Finland’s carbon dioxide emissions by 7%.

Read more

Technical data and roof accessories

The functionality of Weckman Progantti Acoustic Pro is based on the dimensioning and structure of the Progantti profile, factory-installed sound absorption and additional condensation protection.

Weckman Progantti Acoustic Pro

Project and structural design affect the functionality of the overall solution (underlayment, ventilation, insulation). Always follow Progant's installation instructions and site-specific plan. Installation instructions can be found in the Downloads section.

Weckman Progantti Acoustic Pro

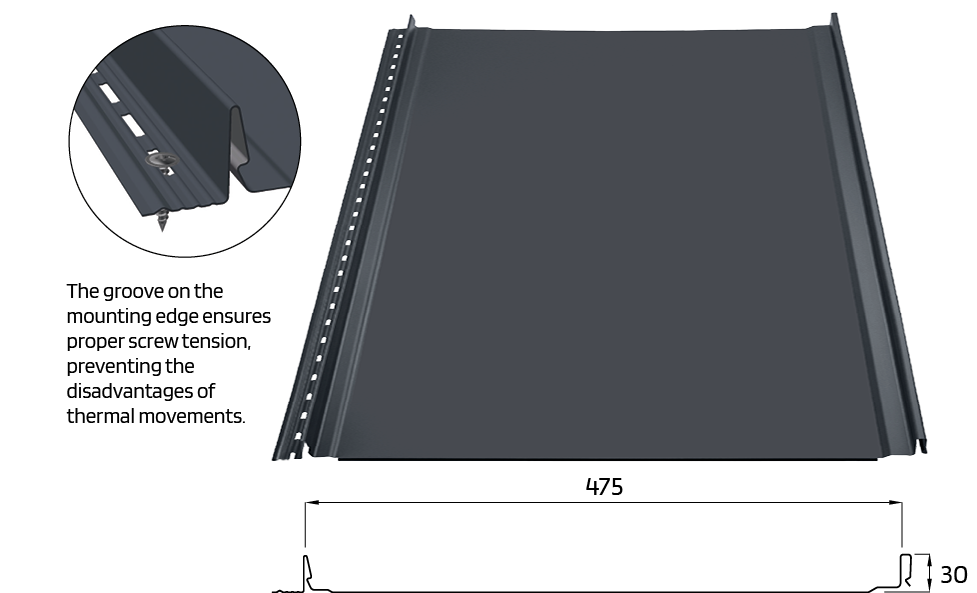

Nominal useful width

475 mm

Overall width

505 mm

Minimum length

1500 mm

Maximum length

15500 mm

Profile height

29 mm

Raw material

0,5 or 0,6 mm structural steel

Steel grade

S280GD+Z

Fire class

BROOF (RakMk E1)

Minimum recommended roof pitch

1:8

Rib division

300 mm

Sound attenuation

Integrated, sound-absorbing structure

Condensation control

Mechanically installed additional condensation protection

Hygiene

Antibacterial and mold-resistant material

Manufacturing

Factory-installed, uniform quality



Dimensions according to SFS-EN 508-1 tolerances

Project and structural design affect the functionality of the overall solution (underlayment, ventilation, insulation). Always follow Progant's installation instructions and site-specific plan. Installation instructions can be found in the Downloads section.

Standard colors:
Pine green RR11
Light gray RR21
Dark gray RR23
Red RR29
Brick red RR750
Dark brown RR32
Black RR33

ONLY FROM WECKMAN

The WECKMAN side bracket solution allows free thermal expansion of the roofing material and reduces roof sheet bulging and noise.

The WECKMAN ventilation spring ensures adequate roof ventilation in the Weckman ridge structure even in cold weather. Moisture is removed through the ridge without condensing on the underside of the roof, thus minimizing the risk of damage to structures under the water roof.

Installation accessories for Weckman Progantti roof

Progantti roofing sheet

Effective width 475 mm.

Wide ridge capping L=2 m

The widest ridge capping on the market makes installation easy and gives margins.

Ridge seal L~464 mm

Improves the ventilation of the roof. Colour RR23.

Gable flashing L=length of the roof (up to 10 m only with Progantti orders)

Flashing the same length as the roof (max. 10 m) in one piece without seams.

Lower eaves flashing L=2 m

Adjustable lower eaves flashing that facilitates the installation of gutters and controls the eaves line.

Mitre plate, full width L = 2 m

Full-width mitre plate that ensures waterproofness even in gently sloping Progantti roofs.

Gasket tape

For the sealing of mitres. With adhesive surface.

Damping strip

Reduces noise caused by wind, quick and easy to install.

End-wall flashing to the side L=2 m

For roof-to-wall connections.

End-wall flashing L=2 m

Available pre-bent to the correct angle.

Lower flashing, galvanised L=2 m

Necessary at the eaves under the gable flashing – keeps the gable boards dry.

Drain/radon ventilation pipe

Insulated 110. Complete set, includes Progantti lead-through.

Ventilation outlet pipe

Insulated 125/160 mm. Complete set, includes Progantti lead-through.

Lead-through rubber

25-70 mm, 50-100 mm, 90-150 mm, 125-200 mm

Roof hatch

Passage size 600 x 600 mm. Includes hinges and lock.

Ventilation spring

Keeps the ventilation channels open in a ventilated ridge construction also in winter conditions.

Side fastener, galvanised

Allows free thermal movements at the edge of the roof, prevents wrinkling and noise.

Upper eaves flashing L=2 m

For pent roof ridges. Available pre-bent to the correct angle.

Hip seal flashing L = 2 m

Perforated sealing flashing that prevents snow and water from entering the underlying structures and improves ventilation. Colour RR23.

Roofing screws 4.8 x 28

For attaching the bottom edge of mitre-cut roofing sheets and flashings.

Progantti-screws RST 4,2 x 25

Guaranteed durability and safety

Finish your Weckman roof with an impressive and practical drainage system. Trough gutters and gutter pipes are manufactured of hot galvanised steel, which is Pural-coated on both sides. The benefits of the coating are excellent corrosion resistance, good cleanability and durable appearance. Standard colours: white, red, dark grey, dark brown and black .

DIMENSIONS

Down pipe

Down pipe set for 3.0-metre eaves, eaves-heights of over 3 metres with extension parts.

Trough gutter

Standard length

Standard length Standard length 3.0 m, 4.0 m or 5.0 m. Outer bracket and overlap piece as standard.

P13 Trough gutter

P13 End piece

P13 Gutter bracket, short

P13 Gutter bracket, long

P13 Gutter bracket, angled (1:3; 1:2,5; 1:1,15)

P13 Overlap piece

P13 Gutter discharge

P13 Inner corner

P13 Outer corner

P10 Upper bend

P10 Lower bend

P10 Discharge pipe

P10 Downspout fastener

P10 Diversion

P13 Downspout pipe 1.0 m and 2.3 m

Safe and durable Weckman roof safety accessories

Wall ladders guarantee safe entry onto the roof. A roof bridge ensures a safe passage on the roof in connection with, e.g., chimney sweeping, snow dropping, antenna installations and other tasks on the roof. Snow breakers are designed to prevent damage caused by snow dropping and to protect the roof coating. All roof safety accessories are reliable and high-quality Finnish products.

Ladders

Weckman ladders are made of hot galvanised oval tubes without weldings. The steps are round tubes. Wall ladders come in powder-coated or galvanised styles and roof ladders are only available powder-coated.Standard colours for roof and wall ladders: white, red, dark grey, dark brown and black.

ROOF LADDER

Standard lengths 1,2m, 2,7m, 3,3m, 4,2m, 4,5m, 5,4m, 6m, 6,6m, 7,5m, 8,4m. The ladder set includes the ladder frame and wall mounts.

WALL LADDER

Standard lengths 1,2m, 2,7m, 3,3m, 4,2m, 4,5m, 5,4m, 6m, 6,6m, 7,5m, 8,4m. The ladder set includes upper arcs for the ladder frame and wall mounts (for an eaves width of 85–100 cm).

SAFETY LADDER

1,2m, 2,7m, 3,3m, 4,2m, 4,5m, 5,4m, 6m, 6,6m, 7,5m, 8,4m. Includes the ladder frame and wall mounts.

Roof bridge

A roof bridge can also be used for the construction of work platforms and stairs on the roof. Weckman roof bridges are safe, have a snow permeation capacity of over 50% and are classified as class 2, allowing the fastening of safety ropes. The roof bridges are powder coated. Roof profile-specific roof mounts. Standard colours: dark grey, red, dark brown, black, tile red.

ROOF BRIDGE

Standard lengths 1.21 m (3 roof mounts), 2.47 m (3 roof mounts) and 2.97 m (4 roof mounts).

Snow breaker

In Finnish conditions, snow breakers are necessary where people pass by.Weckman tube snow breakers are made of hot galvanised steel.The snow breaker is delivered either galvanised or powder-coated.Two oval tubes, four roof mounts according to the roof sheet.Standard colours: dark grey, red, dark brown, black, tile red.

SNOW BREAKER

3000 mm

Weckman Progantti sheets, installation instructions (Pdf 1,51 Mt)
Instructions for roof maintenance (Pdf 4,71 Mt)
Weckman Progantti sheets: DoP.606/13 (Pdf 482,80 kb)
Weckman Progantti sectional views PDF (Pdf 35,81 kt)
Minimum roof inclinations
Weckman drainage systems and roof safety accessories, installation instructions
Weckman Progantti installation video

Weckman quality is ensured by manufacturing in accordance with the ISO9001 quality system. You can also recognize Weckman quality from the CE marking, as all our steel products meet the requirements of the SFS-EN 14783:2006 and SFS-EN 1090-1:2009+A1:2011 standards. Each of our employees has internalized our goal of keeping the quality of our work high and flawless.

Weckman Premium 50

Weckman Standard 40

Weckman Progant installation
